Curtain Wall Fire Stop Board

ABM® Curtain Wall Fire Stop Board is designed specially for all types of curtain walls. The product has higher temperature resistance, higher melting point, longer fire resistance time and smaller high-temperature linear shrinkage.

CFS series can be applied not only as the fire and smoke barrier between curtain wall and floor slab or curtain wall and partition, but also as the barrier between other construction gaps around wall penetration pipes or floor penetration pipes. In order to enhance the smoke barrier capability of CFS series, fire proof aluminum foils can factory-laminated to the rock wool board.

Standard Specification
Product Properties
Product Application
Authenticity Verification

Product Type

CFS 64

CFS 80

CFS 110

CFS 120

Nominal Density, kg/m3

64

80

110

120

Thickness, mm

135

100

100

100

耐火极限，小时

1

2

4

Size(L×W), mm

1200x600

Properties

CFS

Unit

Test Method

Fibre Diameter

≤6

mm

GB/T 5480

Thermal Conductivity(25℃)

≤0.038

W/(m•K)

GB/T 10295

Reaction to Fire

A1

---

GB 8624

Melting Temperature

≥1000

℃

---

Surface Burning Characteristics

Smoke Development≤5, Flame Spread=0

---

ASTM E84

Linear shrinkage at maximum use temperature （650℃）

<2

%

ASTM C356

Acidity Coefficient

≥2.0

---

GB/T 5480

Water Repellence

≥99

%

GB/T 10299

Mass Moisture Absorption

≤0.5

%

GB/T 5480

Short-term Water Absorption (partial immersion, 24h)

≤0.5

kg/m2

GB/T 30805

Corrosiveness

Corrosion Free

---

ASTM C665

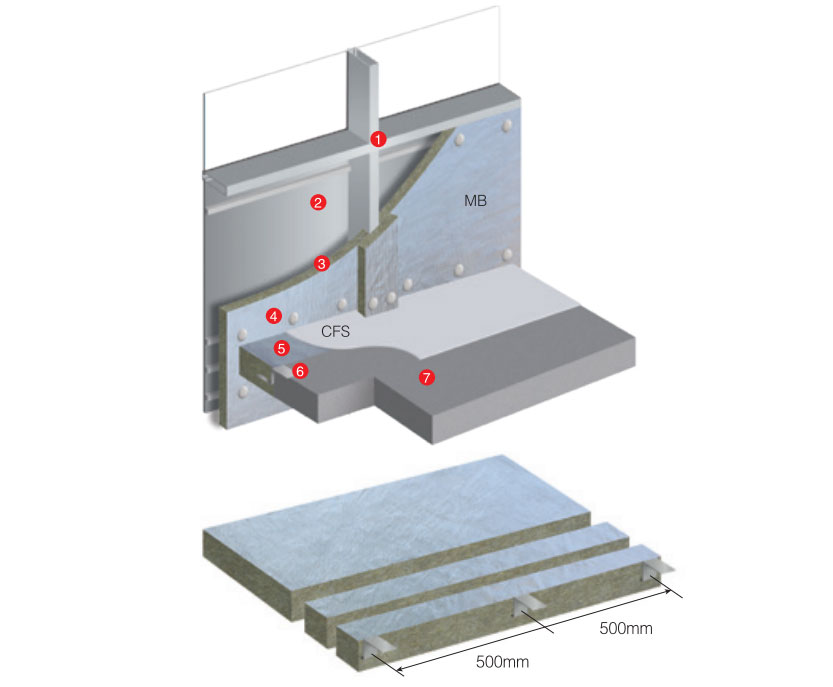

Fire & Thermal Insulation for Curtain Wall System

    1.Frame

    2.Non-transparent Part of the Curtain Wall

    3.ABM Curtain Wall Insulation Board (MB series)

    4.Facing

    5.ABM Curtain Wall Insulation Board (CFS series)

    6."Z" Shape Fixing Bracket

    7.Floor
