Rock Wool

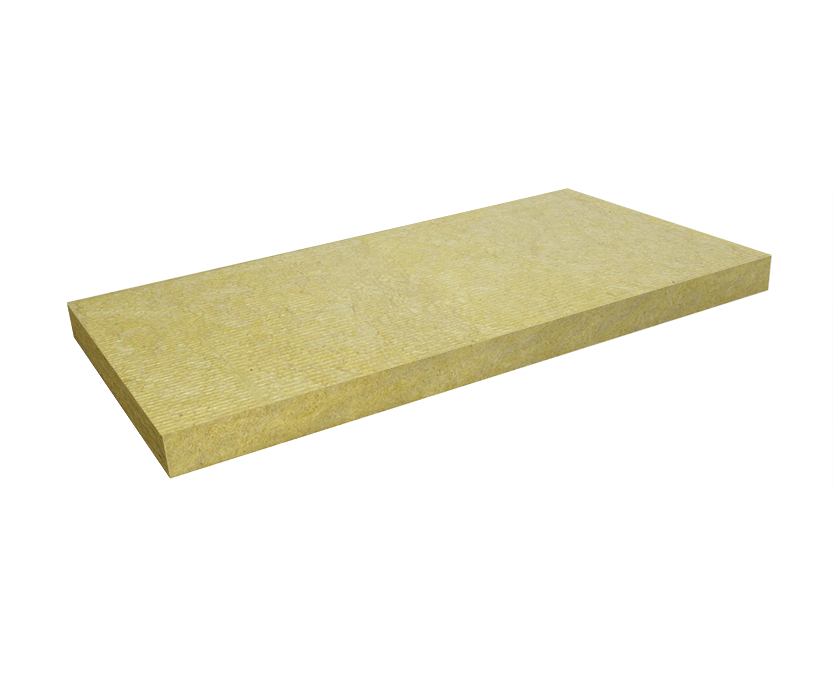

External Thermal Insulation Board

ABM® External Thermal Insulation Board (FRB series) is designed for external thermal insulation composite system and dry-hanging curtain wall system as a fire proof insulation material. With high compressive and tensile strength, excellent hydrophobic and moisture proof property, it can be applied on all kinds of solid wall substrate such as masonry and concrete, and both suitable for new/expansion project and retrofitting project of existing buildings. When a fire breaks out, the product's class-A non-combustibility and fire-proof performance can effectively prevent the spread of fire.

Standard Specification
Product Properties
Product Application
Authenticity Verification
Product Type  FRB 75FRB 100FRB 150
Nominal Density, kg/m3≥ 140≥ 140≥ 150
Thickness, mm40 - 150
Size(L×W), mm1200 x 600
PropertiesFRB 75FRB 100

FRB 150

Unit

Test Method

Tensile Strength (perpendicular to surface)

≥7.5

≥10

≥15

kPa

GB/T 30804

Compressive Strength (10% deformation)

≥40

≥50

 ≥60

kPa

GB/T 13480

Thermal Conductivity(25℃)

≤0.039

W/(m•K)

GB/T 10295

Reaction to Fire

Class A

---

GB 8624

Melting Temperature

≥1000

℃

---

Fibre Diameter

≤6

mm

GB/T 5480

Acidity Coefficient

≥1.8

---

GB/T 5480

Water Repellence

≥99

％

GB/T 10299

Mass Moisture Absorption

≤0.5

％

GB/T 5480

Short-term Water Absorption (partial immersion, 24h)

≤0.2

kg/m²

GB/T 30805

Long-term Water Absorption (partial immersion, 28d)

≤1.0

kg/m²

GB/T 30807

Dimensional Stability

≤0.5

％

GB/T 30806

K2O + Na2O

≤5.0

％

GB/T 1549

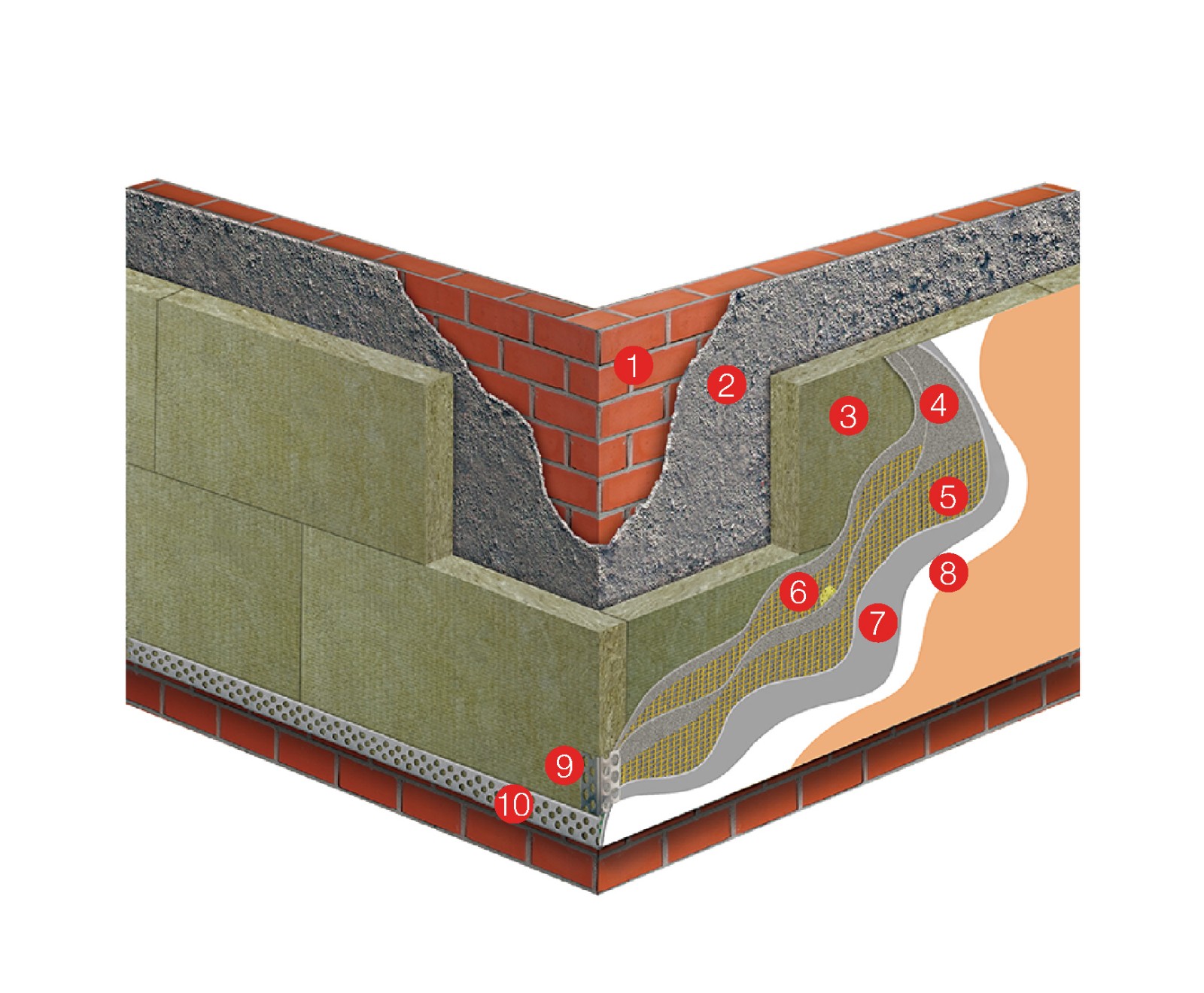

External Thermal Insulation Composite System with FRB Series

    1.Substrate

    2.Adhesive Mortar

    3.ABM External Thermal Insulation Board (FRB series)

    4.Base Coat

    5.Anchors

    6.Finishing Coat

    7.Corner Protection Rail

    8.Starter Rail

    In order to give full play to rock wool's vapor permeability, impermeable facing materials such as ceramic tile, high elastic paint should be avoided when rock wool external thermal insulation composite system is applied, so the mildew and condensation of the building can be prevented.

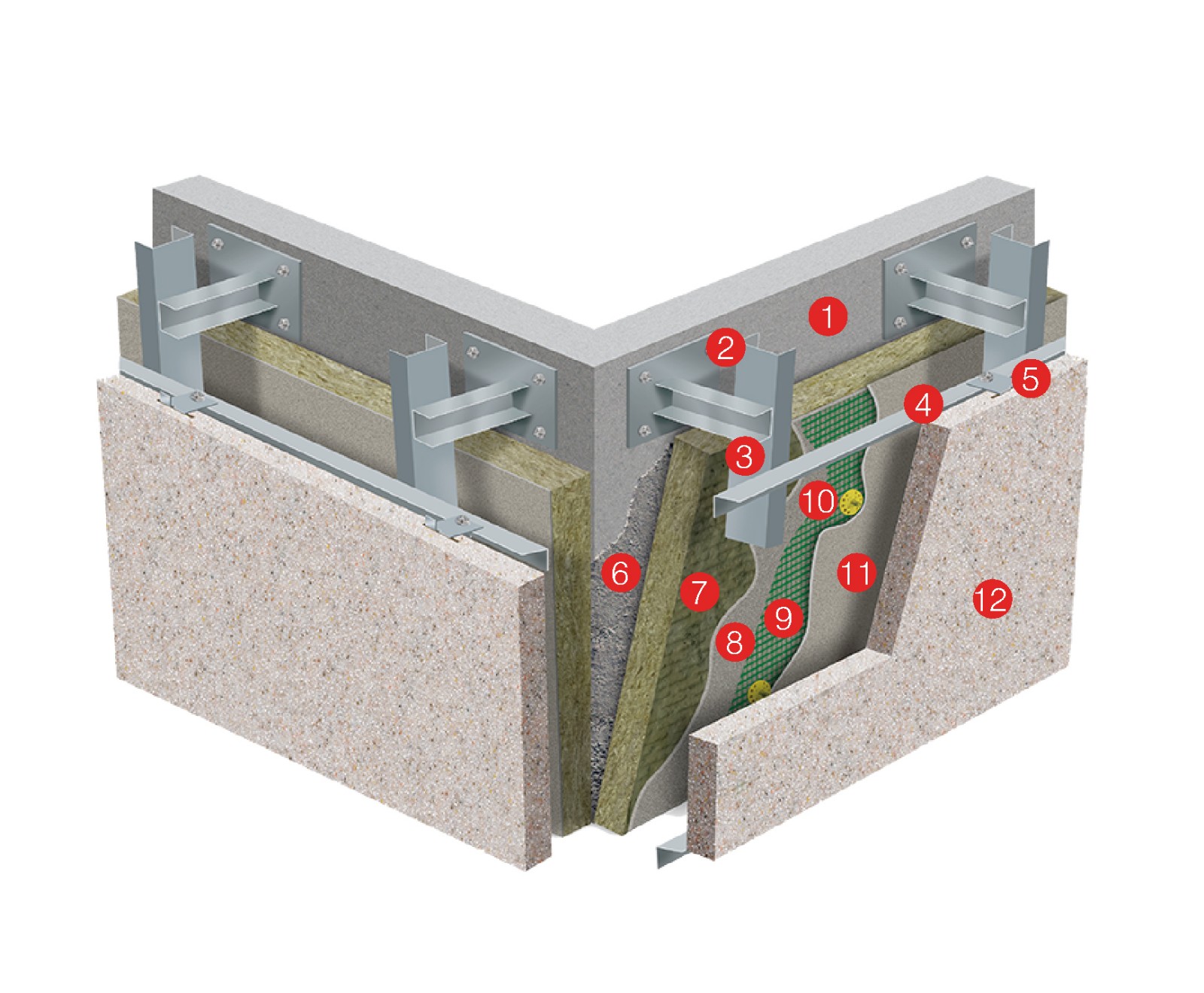

Dry-hanging Curtain Wall Thermal Insulation System

    1.Substrate

    2.Embedded Parts

    3.Vertical Keel

    4.Horizontal Keel

    5.Adhesive Mortar

    6.ABM External Thermal Insulation Board (FRB series)

    7.Base Coat

    8.Anchors

    9.Stone Cladding
