ABM® External Thermal Insulation Board (FRB series) is designed for external thermal insulation composite system and dry-hanging curtain wall system as a fire proof insulation material. With high compressive and tensile strength, excellent hydrophobic and moisture proof property, it can be applied on all kinds of solid wall substrate such as masonry and concrete, and both suitable for new/expansion project and retrofitting project of existing buildings. When a fire breaks out, the product's class-A non-combustibility and fire-proof performance can effectively prevent the spread of fire.
| Product Type | FRB 75 | FRB 100 | FRB 150 |
| Nominal Density, kg/m3 | ≥ 140 | ≥ 140 | ≥ 150 |
| Thickness, mm | 40 - 150 | ||
| Size(L×W), mm | 1200 x 600 | ||
| Properties | FRB 75 | FRB 100 | FRB 150 | Unit | Test Method |
Tensile Strength (perpendicular to surface) | ≥7.5 | ≥10 | ≥15 | kPa | GB/T 30804 |
Compressive Strength (10% deformation) | ≥40 | ≥50 | ≥60 | kPa | GB/T 13480 |
Thermal Conductivity(25℃) | ≤0.039 | W/(m•K) | GB/T 10295 | ||
Reaction to Fire | Class A | --- | GB 8624 | ||
Melting Temperature | ≥1000 | ℃ | --- | ||
Fibre Diameter | ≤6 | mm | GB/T 5480 | ||
Acidity Coefficient | ≥1.8 | --- | GB/T 5480 | ||
Water Repellence | ≥99 | ％ | GB/T 10299 | ||
Mass Moisture Absorption | ≤0.5 | ％ | GB/T 5480 | ||
Short-term Water Absorption (partial immersion, 24h) | ≤0.2 | kg/m² | GB/T 30805 | ||
Long-term Water Absorption (partial immersion, 28d) | ≤1.0 | kg/m² | GB/T 30807 | ||
Dimensional Stability | ≤0.5 | ％ | GB/T 30806 | ||
K2O + Na2O | ≤5.0 | ％ | GB/T 1549 | ||
1.Substrate
2.Adhesive Mortar
3.ABM External Thermal Insulation Board (FRB series)
4.Base Coat
5.Anchors
6.Finishing Coat
7.Corner Protection Rail
8.Starter Rail
In order to give full play to rock wool's vapor permeability, impermeable facing materials such as ceramic tile, high elastic paint should be avoided when rock wool external thermal insulation composite system is applied, so the mildew and condensation of the building can be prevented.

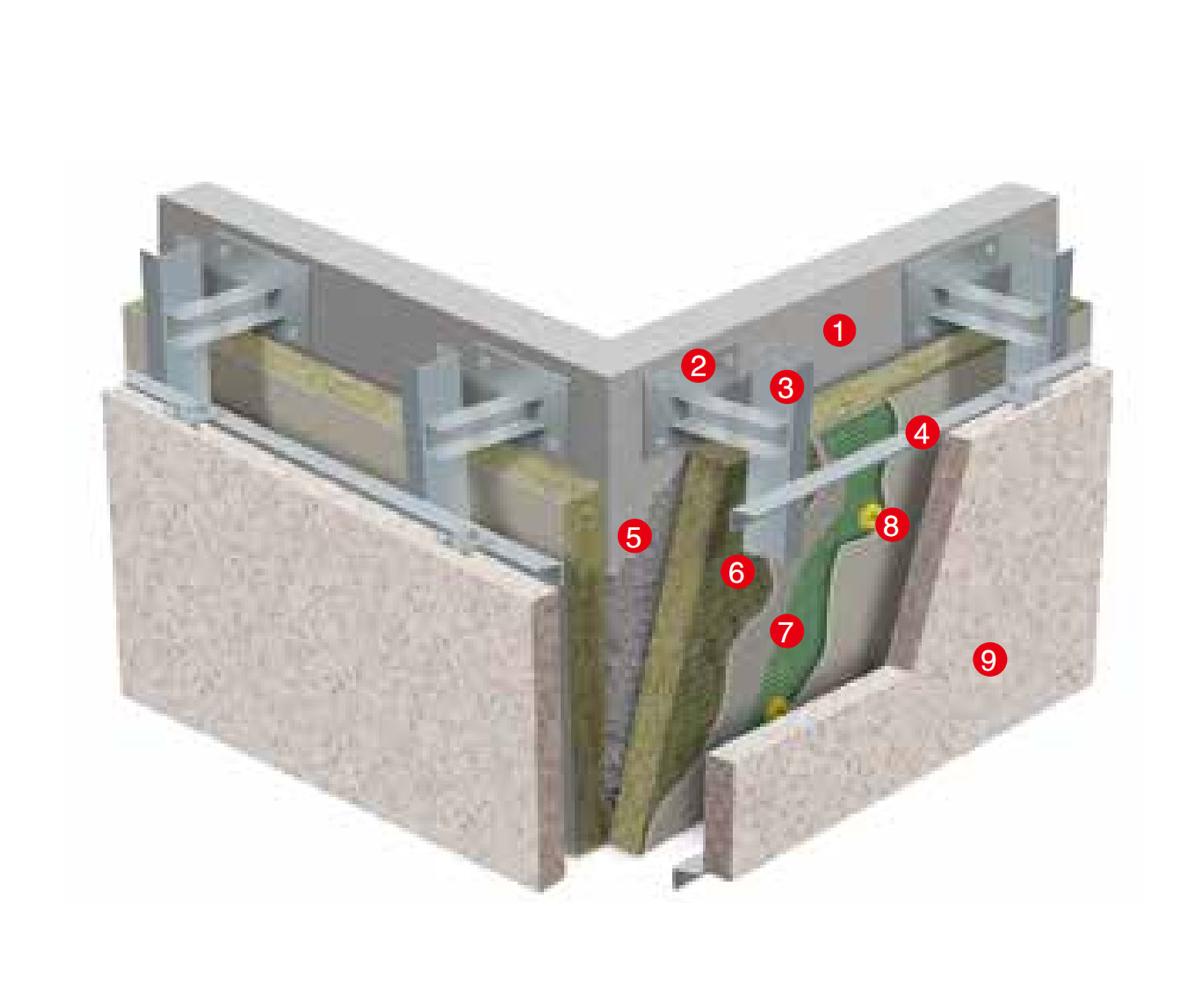

1.Substrate
2.Embedded Parts
3.Vertical Keel
4.Horizontal Keel
5.Adhesive Mortar
6.ABM External Thermal Insulation Board (FRB series)
7.Base Coat
8.Anchors
9.Stone Cladding
