ABM® Sandwich Panel Core Insulation (SP series) has very high compression, tensile and shearing strength. The product is widely used at external walls, roofings, inner partitions and ceilings in various types of industrial plants, office buildings, airports, stadiums, pavilions, shops, supermarkets, logistics centers, storage centers and public buildings. SP series include SPS series and SPL series.
SPS series are provided to companies with rock wool cutting equipment. The product is applied after cutting and flipped. SPL series have vertical fiber,have good performance on the compression,tensile and shearing.
SPS series | |||
Product Type | SPS 100 | SPS 120 | SPS 140 |
Nominal Density, kg/m3 | 100 | 120 | 140 |
Thickness, mm | 100 , 150 , 200 | ||
Size(L×W), mm | 1200x600 , (1800~2400) x 1200 | ||
SPL series | |||
Product Type | SPL 100 | SPL 120 | SPL 140 |
Nominal Density, kg/m3 | 100 | 120 | 140 |
Thickness, mm | 40~200 | 30~200 | 25~200 |
Size(L×W), mm | 1200x100 , 1200x150 , 1200x200 | ||
Properties | SP 100 | SP 120 | SP 140 | Unit | Test Method |
Tensile Strength (perpendicular to surface) | ≥100 | ≥180 | ≥250 | kPa | GB/T 30804 |
Compressive Strength (10% deformation) | ≥60 | ≥100 | ≥140 | kPa | GB/T 13480 |
SPS Thermal Conductivity(25℃) | ≤0.039 | W/(m•K) | GB/T 10295 | ||
SPL Thermal Conductivity(25℃) | ≤0.044 | W/(m•K) | GB/T 10295 | ||
Reaction to Fire | A1 | --- | GB 8624 | ||
Melting Temperature | ≥1000 | ℃ | --- | ||
Acidity Coefficient | ≥1.8 | --- | GB/T 5480 | ||
Water Repellence | ≥99 | % | GB/T 10299 | ||
Mass Moisture Absorption | ≤0.5 | % | GB/T 5480 | ||
Short-term Water Absorption (partial immersion, 24h) | ≤0.5 | kg/m2 | GB/T 30805 | ||
Dimensional Stability | ≤0.5 | % | GB/T 30806 | ||
SPS Thickness Deviation | ±2 | mm | GB/T 5480 | ||
SPL Thickness Deviation | ±0.5 | mm | GB/T 5480 | ||
Noise Reduction Coefficient（NRC） | ≥0.80 | --- | GB/T 18696 | ||
1.Column
2.Inner Metal Panel
3.ABM Sandwich Panel Core Insulation (SPL series)
4.Outer Metal Panel

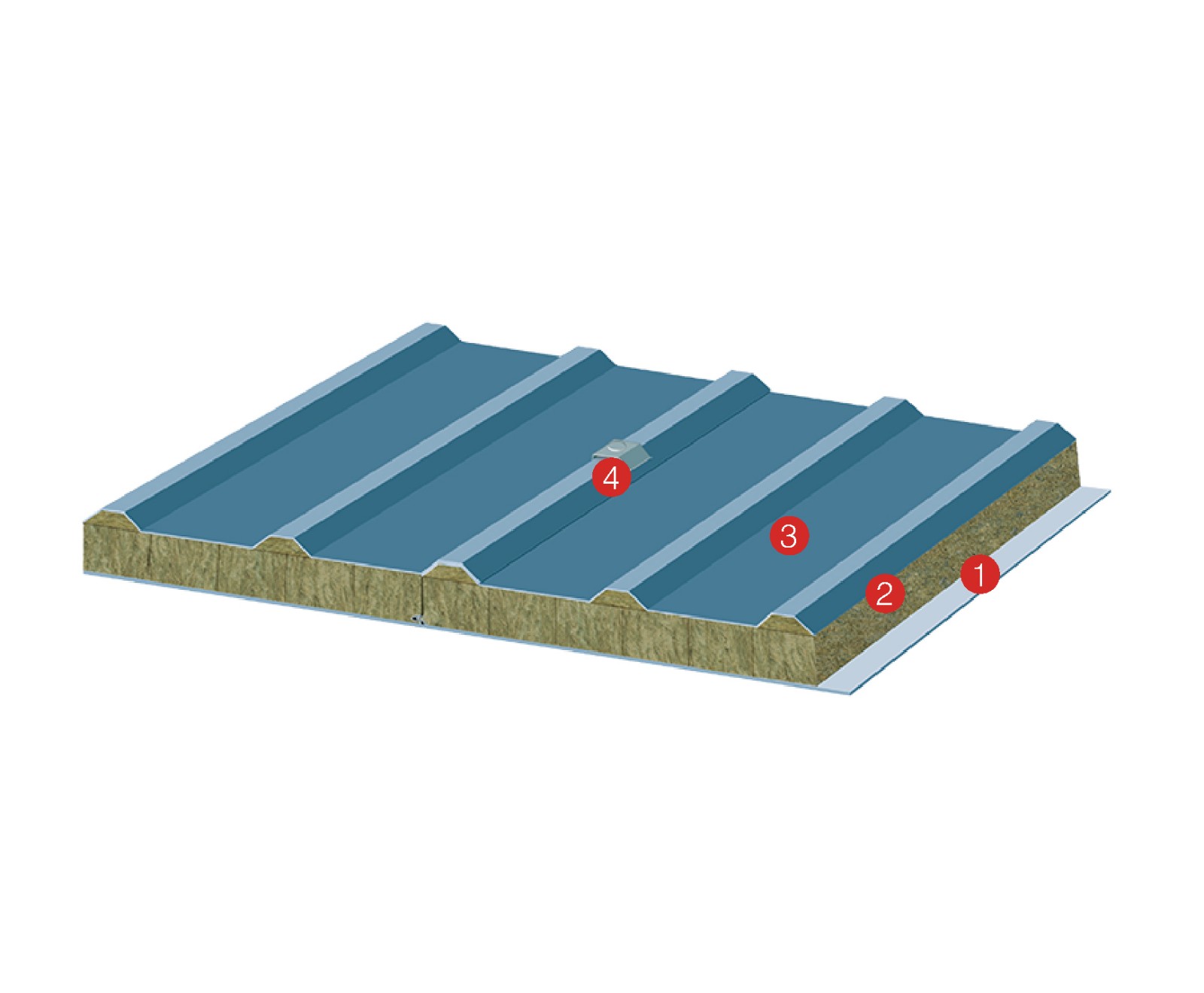

1.Inner Metal Panel
2.ABM Sandwich Panel Core Insulation (SPL series)
3.Outer Metal Panel
4.Caps
